Bar Equipment
Ice Well Cocktail Bar Station with Expand platform (Both Size/Single Side)
Key Features
Specifications
- Material
- SUS304 Stainless Steel
- 'Overall Size (Full Expanding)'
- 1400 x 460 x 850 mm
- 'Non-Expanding Dimensions'
- 700 x 460 x 850 mm
- 'Bowl Dimensions'
- 600 x 360 x 300 mm
- 'Expanding Platform Dimensions'
- 350 x 460 mm
- Splashback
- 100 mm
- Ice Wells
- 2/3 insulated, 1 with drainer/sink
Product Description
Description
This commercial ice well cocktail bar station is engineered for high-volume bars, hotels, and event venues that require efficient drink preparation and service.
Construction & Materials
- Material: SUS304 (#304) stainless steel throughout — corrosion-resistant, hygienic and easy to sanitise
- Splashback: 100mm rear splashback protects walls from spillage
- Frame: Reinforced stainless steel structure with stable support

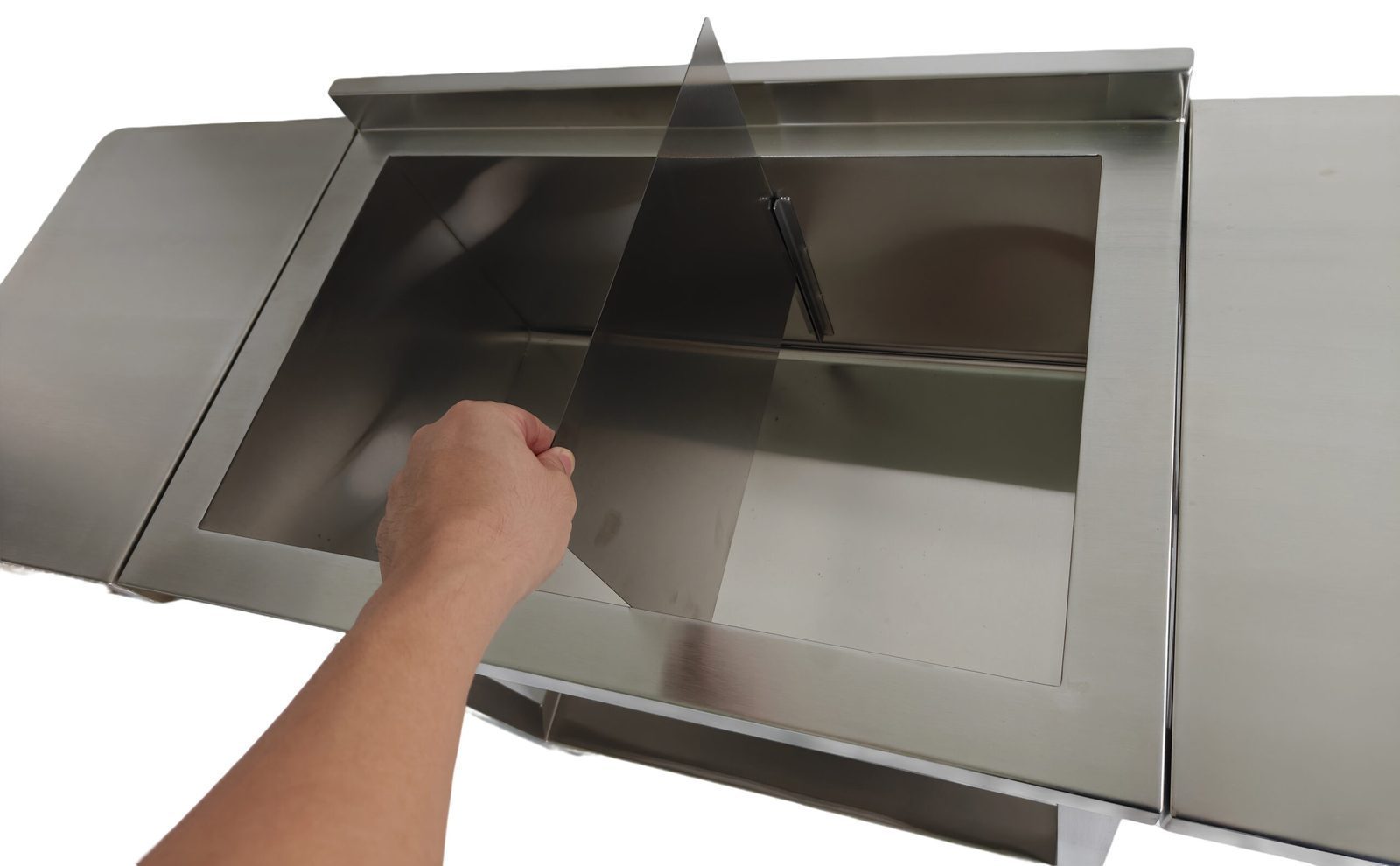

Ice Wells & Drainage
- 2/3 insulated ice well compartments with ample capacity for peak service periods
- One compartment includes an integrated drainer that can be used as a sink
- Ideal for ice storage, bottle chilling and garnish preparation
Expandable Side Platforms
- Left and right folding expansion platforms provide additional workspace on demand

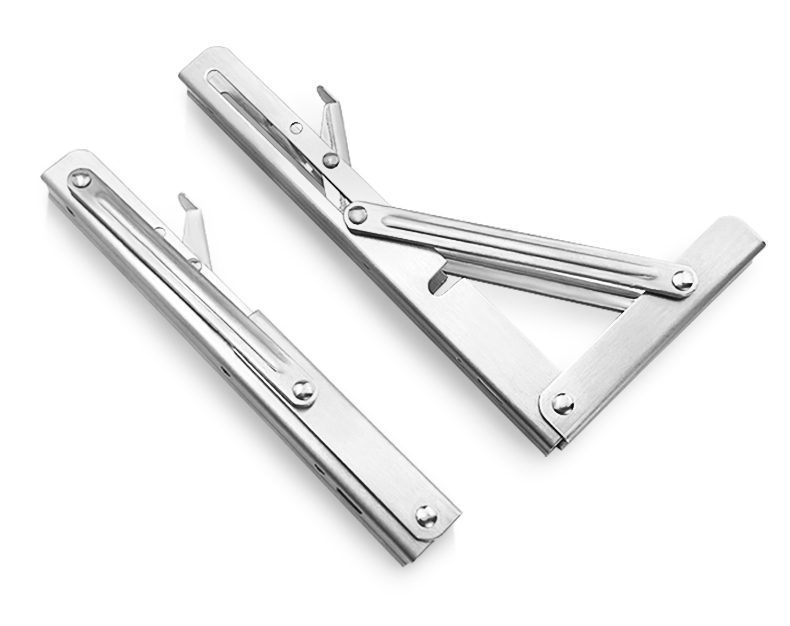

- Triangular support brackets — robust, stable and foldable with one hand
- Customisable: single-side expansion platform available on request
Applications
- Cocktail bars and pub service counters
- Hotel event catering and banqueting
- Mobile bar hire and pop-up events
- Restaurant drink stations
OEM/ODM Available
- Bespoke sizes, branding and configuration options available
- Ideal for UK and European catering standards
- No MOQ — start with a single unit or order in bulk

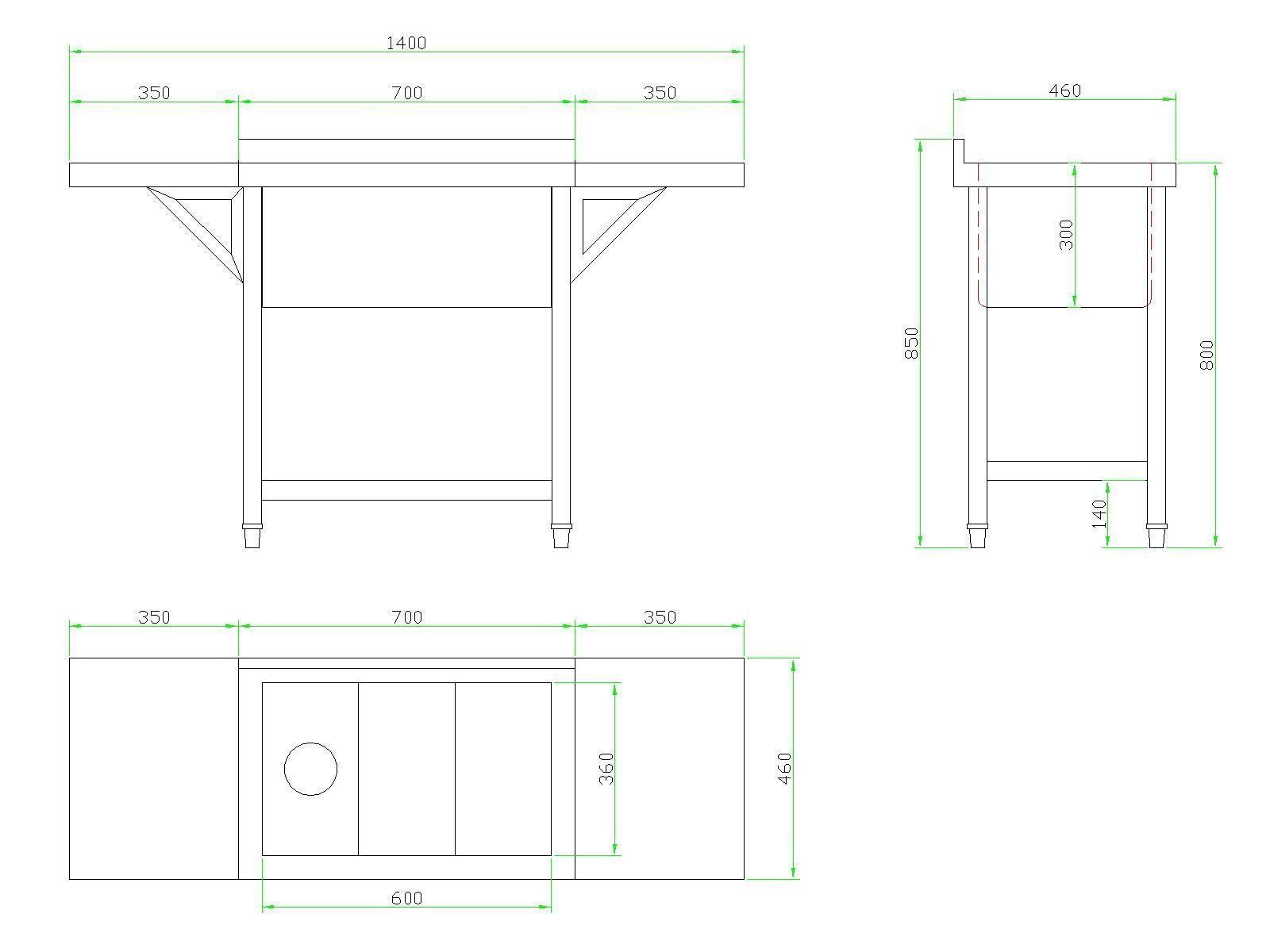

Specifications
| Item | Specification |
|---|---|
| Material | SUS304 (#304) Stainless Steel |
| Overall Size (Full Expanding) | 1400 x 460 x 850 mm |
| Non-Expanding Dimensions | 700 x 460 x 850 mm |
| Bowl Dimensions | 600 x 360 x 300 mm |
| Expanding Platform Dimensions | 350 x 460 mm |
| Splashback Height | 100 mm |
| Ice Wells | 2/3 insulated (1 with drainer/sink) |
Features
- ✅ SUS304 stainless steel — durable, corrosion-resistant, food-safe
- ✅ Expandable workspace — foldable side platforms for flexible layouts
- ✅ Insulated ice wells — 2/3 compartments with integrated drainage option
- ✅ 100mm splashback — protects walls, easy to clean
- ✅ Custom configuration — single-side expansion, OEM/ODM available
- ✅ No MOQ — order one unit or full container, same quality
